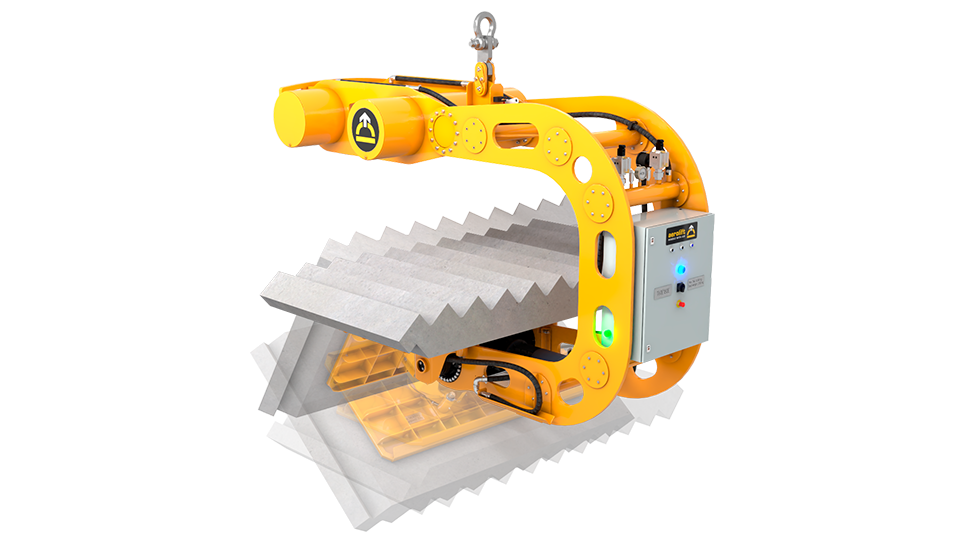

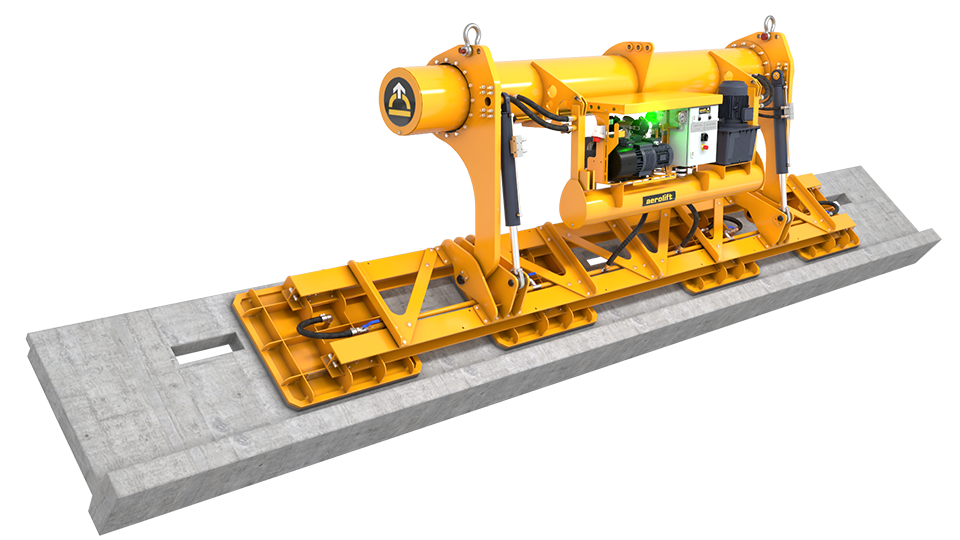

Lifting capacity:
1–30 tons
Compatible host machine:
any type of crane
Function:
lifting & 90˚ / 180˚ tilting
Modular vacuum tilters for efficient lifting and tilting
The Aerolift T-series are vacuum lifters with an integrated tilting function, combining lifting and 90˚ or 180˚ tilting in a single movement. Thanks to their modular design, the machine configuration and suction pads can be engineered to match various product shapes, such as precast concrete elements and tunnel segments. An optional quick-exchange coupler lets you swap suction pads quickly and easily, reducing downtime when handling different products.
Key benefits
- Preventing product damage
- Simplified handling
- Expense reduction
- Streamlined operations
- Enhanced safety
- Energy-efficient operation
- Good return on investment
Safety
- Safety factor 2: double the maximum lifting capacity
- Manufactured using ISO 3834-2 certified welding processes
- Remote-controlled handling from a safe distance
- Visual and audible safety indicators
- Alarm system with battery backup
- Minimum 20-minute holding time in case of power failure
- Optional additional safety features available
Ease of use
- No manual attachment of slings, hooks or clamps required
- Remote control with intuitive button layout
- Suction and release within 1 second
- Clear indication when it is safe to lift
- Easy storage when not in use
- Various suction pads for different load types
- Individual suction pads can be switched off for smaller loads
- Lifting and tilting in one movement
Technical specifictions
- Working Load Limit (WLL): 1-30 tons
- Compatible with any type of crane
- Single or double hook suspension
- Power supply: electric, hydraulic, battery or diesel
- Operating temperature: -20°C to +40°C
- Suitable for indoor and outdoor use
- CE certified according to EN 13155
Service & maintenance
- Maintenance-oriented design for easy access to pump, valves and filters
- In-house developed vacuum components for reliability and durability
- Simple daily inspections completed within minutes
- Clear maintenance documentation and service checklists
- Optional maintenance training upon delivery
- Optional maintenance plan with periodic service visits
- Global availability of spare parts and replacement components
- Worldwide service and technical support
Applications for T-series vacuum tilters
Aerolift T-series vacuum tilters are perfect for precast concrete manufacturers that need to demould, lift and tilt concrete elements or tunnel segments efficiently. They are also widely used by construction companies and infrastructure contractors for the handling, storage and installation of precast concrete products. Typical handling operations include:
- Demoulding
- Lifting and tilting
- Internal transport
- Installation
Photos and videos of the T-series vacuum tilters
